Single Shaft Shredders

Gaz 62 – The Compact All-Rounder

The power pack with super performance

The robust GAZ 62 series valuable substance shredders shred materials such as wood, cardboard, plastic and many others economically and effectively. The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.
The GAZ 62 series shredders are compact and designed for highperformance.

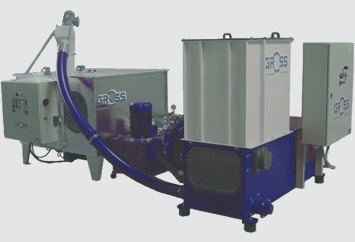

GAZ 62 with briquetting press GP
with customer specific hopper

used at a joiner’s woodshop

Waste from furniture manufacturing

Hardwood waste

Mixed waste

Broken-down pallets


Flat rotor
(GAZ 62 E)

Profile rotor with welded
knife carriers (GAZ 62 S)

Square knife and
concave ground knife

Hopper, filled with material

Transmission and motor


Screen basket

Switching cabinet / SPS control

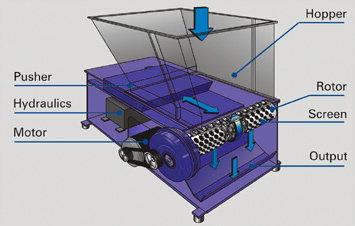

Material is fed through the hopper in front of a hydraulically operated drawer, which pushes the material load-controlled onto the turning rotor. The material is shredded between the rotor knives and a fixed counterknife. The drawer has stripping bars that prevent material from entering between the drawer and machine housing. The screen hole with different perforation diameters determines the size of clippings or shavings. Produced shavings can be removed from the machine with the suction device or spiral conveyor. Once the material is shredded, the machine will automatically shut off.

Technical Data
  GAZ 62/GAZ 62 E GAZ 62 S
Feed opening (mm): 600 x 800 600 x 900
Hopper capacity (m³): 0,6 m³ 0,7 m³
Throughput: Material and screen dependent
Rotor diameter (mm): 252 368
Rotorlength (mm): 600 600
Rotor speed (rpm): 60 - 100 60 - 100
Power required (kW): 11/15/18,5 15/18,5/22*
Tools: 14 knives 17 / 30 knives
Screen perforation: 10 - 40 mm 10 - 40 mm
Suction piece-Ø: 160 mm 200 mm
Air speed (m/sec.): 28 28
Weight (approx. kg): ca. 1.300 ca. 1.700

*hydro start coupling possible from 22 kW.
PLC option for fully automated operation (upon request)
Special designs upon request.
Demonstrations and trials with your material may be coordinated with our technical staff.

Further technical information in the brochure
Single-shaft shredder GAZ 62 brochure download
